Valves

blog_img
  •
  •

This range offers two lines: modular and screw-in cartridge valves. A wide variety of designs with different spool versions, solenoid coils (voltages) and terminals can be used in hydraulic systems of both stationary and mobile machines and equipment.


    Features :

  • • Saves money due to weight-optimized design.
  • • Modular valves sizes CETOP 02 / 03.
  • • Screw-in valves sizes ¾-16 UNF and 7/8-14 UNF.
  • • High variety of electrical terminals (DIN, AMP JET, Deutsch DT04, fl ying leads).
  • • Surface fi nish options for 240 h and 760 h salt spray protection.

Symbol Type Code
Data Sheet 		Cavity/Size Type Code l/min (GPM) / bar (PSI)
2/2, 3/2, 4/2 and 4/3 Solenoid Operated Directional Valves

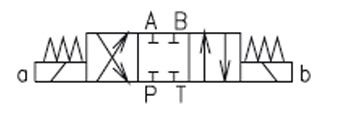

RPEL1-04 / HA4037
RPEL1-06 / HA4056 		D02 / NG4
D03 / NG6 		30 (8.0) / 250 (3600)
50 (13.2) / 250 (3600)

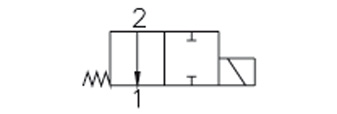

SD2E-A2/L / HA4040
SD2E-B2/L / HA4060 		08 / 3/4-16 UNF
10 / 7/8-14 UNF 		20 (5.3) / 250 (3600)
50 (13.21) / 250 (3600)

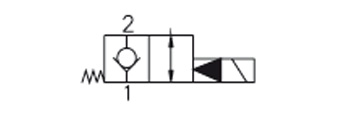

SD2E-A3/L / HA4041
SD2E-B3/L / HA4056 		08 / 3/4-16 UNF
10 / 7/8-14 UNF 		20 (5.3) / 250 (3600)
50 (13.21) / 250 (3600)

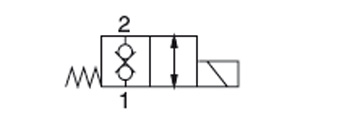

SD2E-A4/L / HA4042
SD2E-B4/L / HA4062 		08 / 3/4-16 UNF
10 / 7/8-14 UNF 		20 (5.3) / 250 (3600)
50 (13.21) / 250 (3600)
SD3E-A2/L / HA4043
SD3E-B2/L / HA4063 		08 / 3/4-16 UNF
10 / 7/8-14 UNF 		20 (5.3) / 250 (3600)
50 (13.21) / 250 (3600)
SD1E-A2/L / HA4070 08 / 3/4-16 UNF 20 (5.3) / 250 (3600)
