Single Tank Controller

blog_img
  •
  •
  • Single Tank Controller
  •

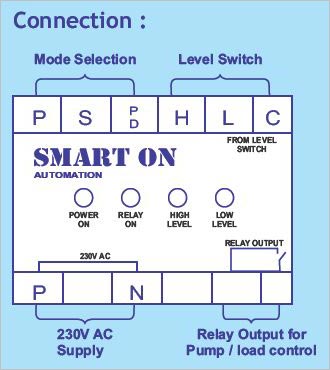

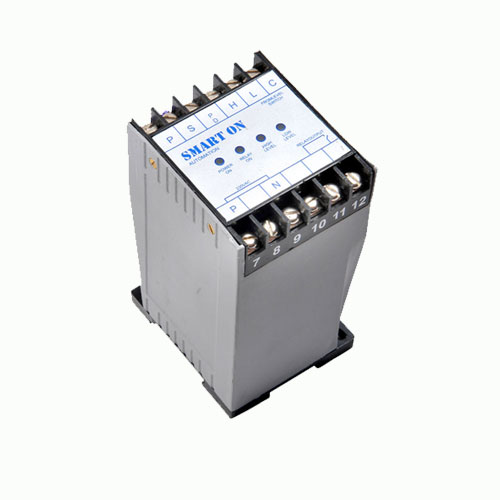

We offer Liquid Level Controller to automatically start & stop the pump with tank level input from Magnetic Float Switch or Cable Float Switch. Liquid Level Controller provides LED Indication for Power ON, Relay ON (Motor ON), Tank High & Tank Low. The controller has provision to select pump mode as Pump UP or Pump Down. In Pump UP mode, the pump starts at Low Level & Stops at High Level. Pump UP mode is used to fill the tank. In Pump DOWN mode, the pump starts at High Level & Stops at Low Level. Pump DOWN mode is used to empty the tank.


    Technical Specification :

  • Input Supply : 230V AC Sensor
  • Input : From Magnetic Float Switch or Cable Float Switch
  • Output : 1NO contact rated fro 230V AC, 5A
  • Mounting : Back panel 35mm din rail mounting
  • Mode : Pump UP ( Filling ) or PUMP Down ( Emptying)

Specifications :


Electronics Housing Stainless Steel or die cast aluminium, flame proof
Temperature 0 to 65 deg C
Applications Atmospheric
Mounting flange : Liquids including hazardous but non-corrosive medium
Input Supply 12V/24 V DC
Analog output (Programmable) 4 – 20mA
20 – 4 mA 3) 0 – 20mA 4) 20 – 0 mA
Mode Distance OR height measurement
LCD Screen 8 x 2 alphanumeric displya, green or blue screen
Communcation RS 485 – Modbus
Measuring range 1) 5m 2) 10m
Resolution 5mm or 10 mm depending on models
Accuracy 0.5% of FSD
Updation time 150 mS max
Minimum distance 300 mm
Display Filter None / Low / Medium / High
Temperature compensation Inbuilt
Voltage Variations Internal calibration and automatic compensation
Process connections 3 inch flange
Threaded lock nut – Customised
Electrical connections PG 9 one gland, 2 numbers
Sensor face Anodised aluminium
Sensor body PVC
