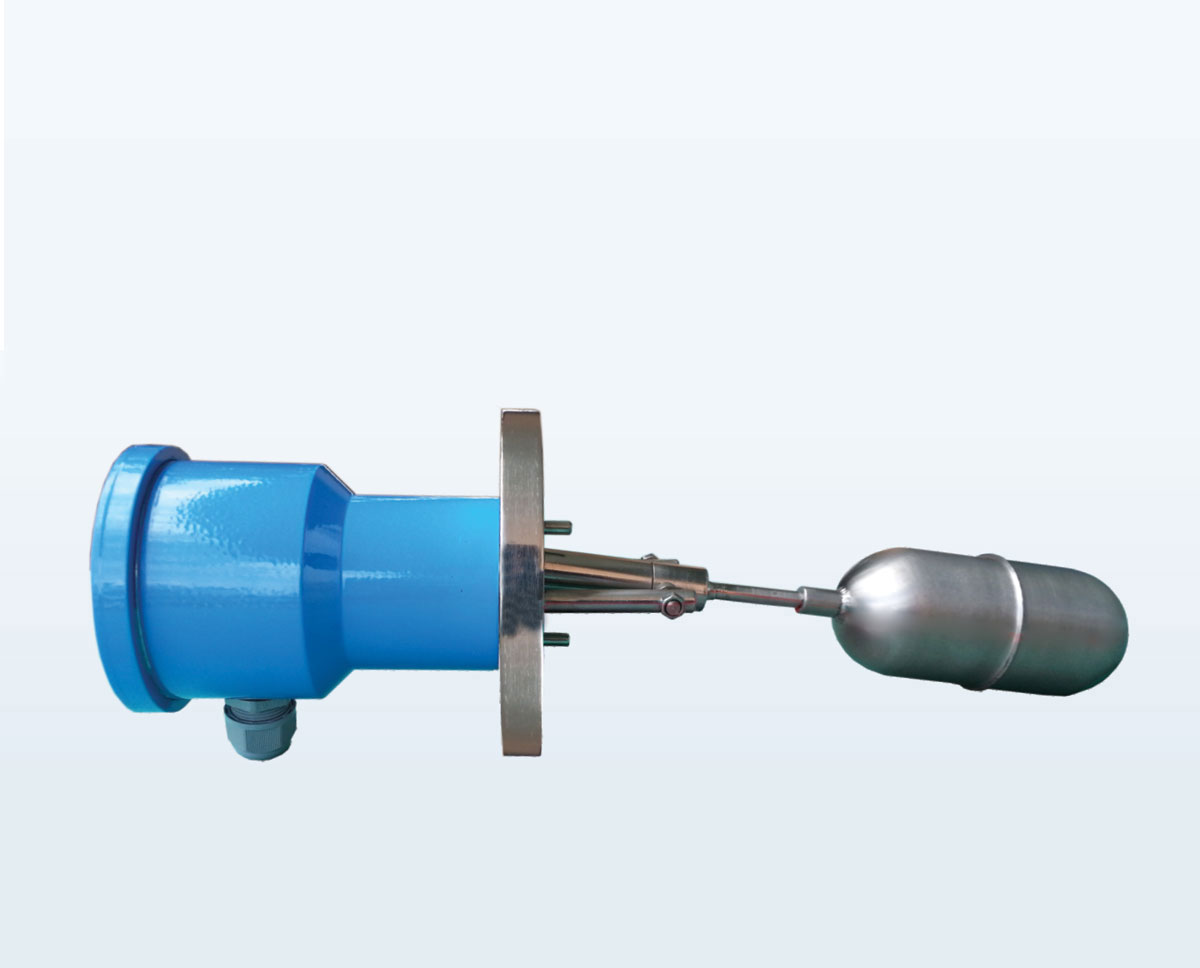

Horizontal Float / Side Mounted Level Switch

blog_img
  •
  •

  • Horizontal Float / Side Mounted Level Switch
  •

Measuring Principle

Side mounted level switch used to control liquid level in vessels containing corrosive or non corrosive liquids. It is used to pump control, Alarm, valve control or level indication.

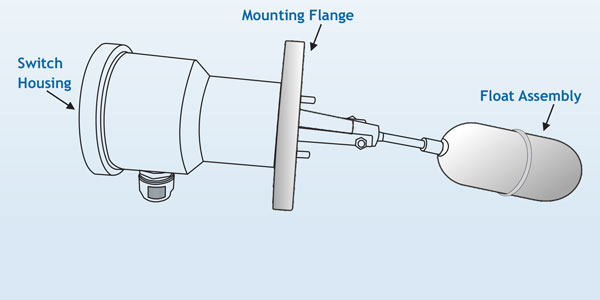

    Construction

  • ● Housing with Micro Switch
  • ● Mounting Flange
  • ● Float Assembly

    Features

  • ● Easy to install
  • ● Reliable
  • ● Available with different flange size
  • ● Available in different MOC

    Application

  • ● Water
  • ● Oil
  • ● Fuels
  • ● Chemical
  • ● Solvents
  • ● Syrup


Specifications :


Switch Type : Micro Switch, SPDT
Switch Rating : 240V AC, 5A
Enclosure : Weatherproof, Flameproof
MOC : Cast aluminium, SS, PP
Flange : Standard Dia 120, 92 PCD,
Also available in ANSI, BIS, DIN Standard Flange
MOC : SS 304, SS 316, PP
Float : Dia 50, 60, 75, Non Standard
Max Temperature : 150º C (Higher temperature on request)
Max Pressure : 20Kg / Cm² (Higher Pressure on request)
