Tubular Level Indicator

blog_img
  •
  •
  • Tubular Level Indicator
  •

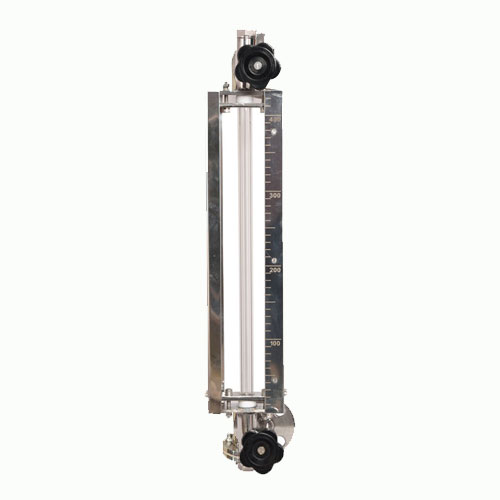

Tubular level indicator is a simple and reliable device for direct reading in atmospheric or pressurized tanks.


    Construction & Design Features :

  • ● The Indicator is fitted between two end blocks through gland packings. The indicator is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in the gauge.
  • ● Guards are provided in the form of Tie-rods for 360 visibility or C- channels around the gauge to protect it from accidental blows.
  • ● Glass removal for replacement possible w/o dismantling the gauge.
  • ● 100% PTFE bush as packing to ensure positive leak tightness for full vacuum as well as 6 kg/cm service pressure.
  • ● It is available in single length of 2000mm c/c distance. We can extend the length by coupling 2 or more through coupler.
  • ● We are providing Air Vent plug at top & drain plug at bottom for taking sample.
  • ● We can also provide inbuilt isolation valve or offset constructed isolation valve on request.
  • ● The connection provided will be Flanged/Screwed/TC joint.

Materials of Construction :


Glass tube 19mm OD-9, 25mm OD-5
Protection guard MS ‘C’ channels-MC, SS 304’C’ channels-SC, MS Tie Rods – MT, SS 304 Tie Rods –ST
End fittings SS 304 – 4, SS316 – 6, CS – C, PP – P, Other Material – O
Isolation Valve Not provided – W, Needle valve – N
Drain Plug – P, Ball valve – B
MOC of Float Chamber : SS 304, SS 316, SS 316L, PP, PVDF, Others on request.
Process Connection Flanged – F, Screwed – S
Scale Aluminium – A, SS 304 – S, Polycarbonate – P
