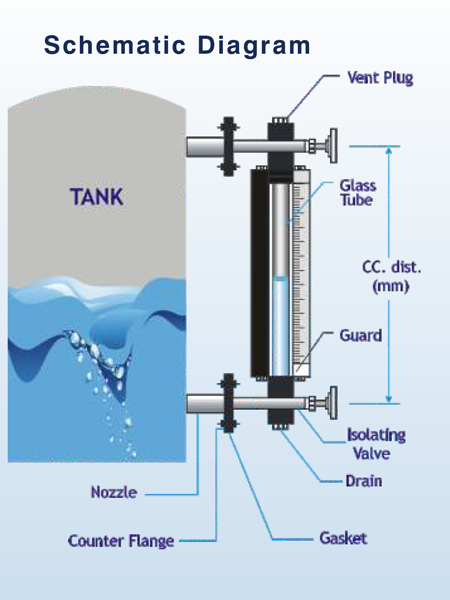

Tubular level indicator is a simple and reliable device for direct reading in atmospheric or pressurized tanks.
Glass tube | 19mm OD-9, 25mm OD-5 |
Protection guard | MS ‘C’ channels-MC, SS 304’C’ channels-SC, MS Tie Rods – MT, SS 304 Tie Rods –ST |
End fittings | SS 304 – 4, SS316 – 6, CS – C, PP – P, Other Material – O |
Isolation Valve | Not provided – W, Needle valve – N |
Drain | Plug – P, Ball valve – B |
MOC of Float Chamber : | SS 304, SS 316, SS 316L, PP, PVDF, Others on request. |
Process Connection | Flanged – F, Screwed – S |
Scale | Aluminium – A, SS 304 – S, Polycarbonate – P |
