Magnetic Level Indicator

blog_img

Magnetic Level Indicator provides clear, high clarity indication of liquid level. Typically, Magnetic Level Gauge consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Indicator is principally designed as an alternative to glass level gauges. We offer Magnetic Level Gauge having top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic level indicators are tailor made to various types of construction and sizes.


    Features :

  • ● Roller Design : Indicator system consists of bi-colour rollers equipped with magnets mounted on a rail inside the housing. As the level starts rising or falling, magnetic float also travels with liquid level in non-magnetic chamber. The magnetic interaction between magnets in float and bi-colour rollers causes each roller to rotate 180°. For applications where High and Low Level electrical signals are required, we offer adjustable limit switches.
  • ● Capsule Design : Indicator system consists of bi-colour capsule, which moves in glass tube inside the housing. As the level Starts, rising or falling magnetic float also travels with liquid level in non magnetic chamber. The magnetic interaction between magnets in float and capsule causes capsule to travel along with magnetic float. For applications where High and Low Level electrical signals are required, we offer adjustable limit switch assemblies.

Working Of Magnetic Level Indicator :

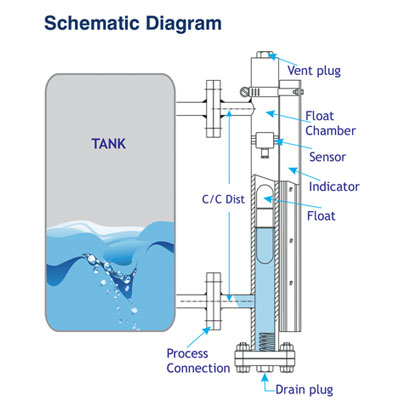

Magnetic Level Gauge operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is typically constructed with non-magnetic pipe having process connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360o magnetic flux field.


Specifications :


Mounting Type : Top / Side
Indicator System : Bi-colour Roller/Follower Capsule
Housing for Indicator : Bi-colour Roller –SS Housing Follower Capsule – Glass Tube in Aluminium / SS Housing
MOC of Indicator : SS 304
Float Chamber : 50NB Non Magnetic Standard pipe
MOC of Float Chamber : SS 304, SS 316, SS 316L, PP, PVDF, Others on request.
Scale : Aluminium / SS / Acrylic engraved in mm
Process Connection : Flanged in various Sizes
Vent : ½” Plugged / ½” Ball Valve
Drain : ½” Plugged / ½” Ball Valve
