Miniature Level Switch

blog_img

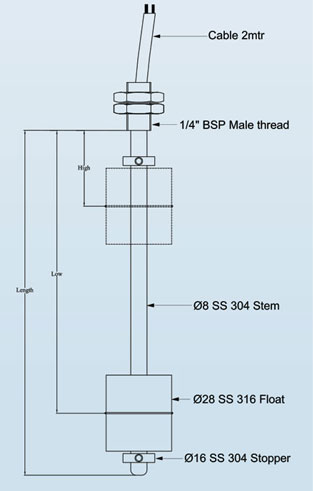

  • Miniature Level Switch is a compact construction, suitable for mounting vertically. Miniature Level Switch consists of a Reed Switch housed inside the guide tube & a permanent magnet inside the Float assembly. The Float moving with the liquid level makes (NC) & breaks (NO) the Reed Switch contact. Miniature Level Switch is used for sensing low, high or both high & low level in tanks.


      Applications :

    • Water
    • Diesel
    • Hydraulic Oil
    • Edible Oil
    • Chemicals & Pharma


    Specifications :


    Probe Length Up to 1000mm
    Float PP, SS 316
    Switching rating 24 V DC, 230VAC
    No. of Switch Levels 1 to 2
    Mounting Flange, Threaded
    Material of construction SS 304, SS 316
    Maximum Temperature 125oC
    Maximum Pressure 10kg/cm2
