Our company “SAHANA ENGINEERING” is the leading and developing manufacturers, suppliers and traders of Oil Level Indicator in Chennai.
Sahana Engineering is a leading manufacturer, supplier & exporter of Oil Level Indicator in Pune. Sahana Engineering Manufacture Cost Effective Oil Level Indicator in Pune and ensures low cost of production, and output of high quality.
Oil Level Indicator is designed to indicate the Oil level inside the tank with a visual indicator above the tank. Oil Level Indicator is very useful in visually monitoring the Oil level from a distance. Reed Proximity sensor is fitted to Oil Level Indicator for remote feedback of high, low or multiple levels of tank .The Reed Proximity Sensors are easily adjustable at site & have Latching technology.

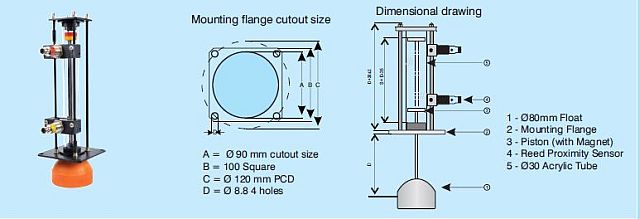

Standard Oil Level Indicator is provided with transparent acrylic tube mounted on a MS flange, supported by four SS tie rods. Reed proximity sensors are mounted on two tied rods using mounting brackets. Float is made up of Solid Nylon Foam of very low density. The float is connected to a piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of oil level indication & actuation of Reed proximity sensor.
Coolant, Oil, Diesel & Hydraulic oil applications.
| Indicator length : | 100mm to 900 mm |
| Max. Temperature : | 80oC |
| Max. Pressure : | Atmospheric |
| Mounting flange : | 100 Sq. Ms |
| Float : | 80mm, Solid Nylon Foam |
| Indicationg tube : | 30, Acrylic |
Our Oil Level Indicator manufacturers in Pune create standard quality products with easily adjustable level features consisting of visual indicators giving adequate performance as per our client expectations.
We suppliers
in Pune provide them with excellent quality high level sensors and are very useful for monitoring and observing the oil level visually from the distance as per the demands of our prestigious clients.
OIL LEVEL INDICATOR is a kind of level indicator that is produced in response towards the need of maintenance to gauge the level of oil present inside the gearboxes, reservoirs, large tanks, etc.
These indicators are
used in automotive or vehicles to check and indicate the levels of lubricant in the vehicle whether they are low or high. The transformers also use them for displaying the air bubbles if they are left in the transformer.
These indicators are used for performing different works in huge number of varying industries as follows:
