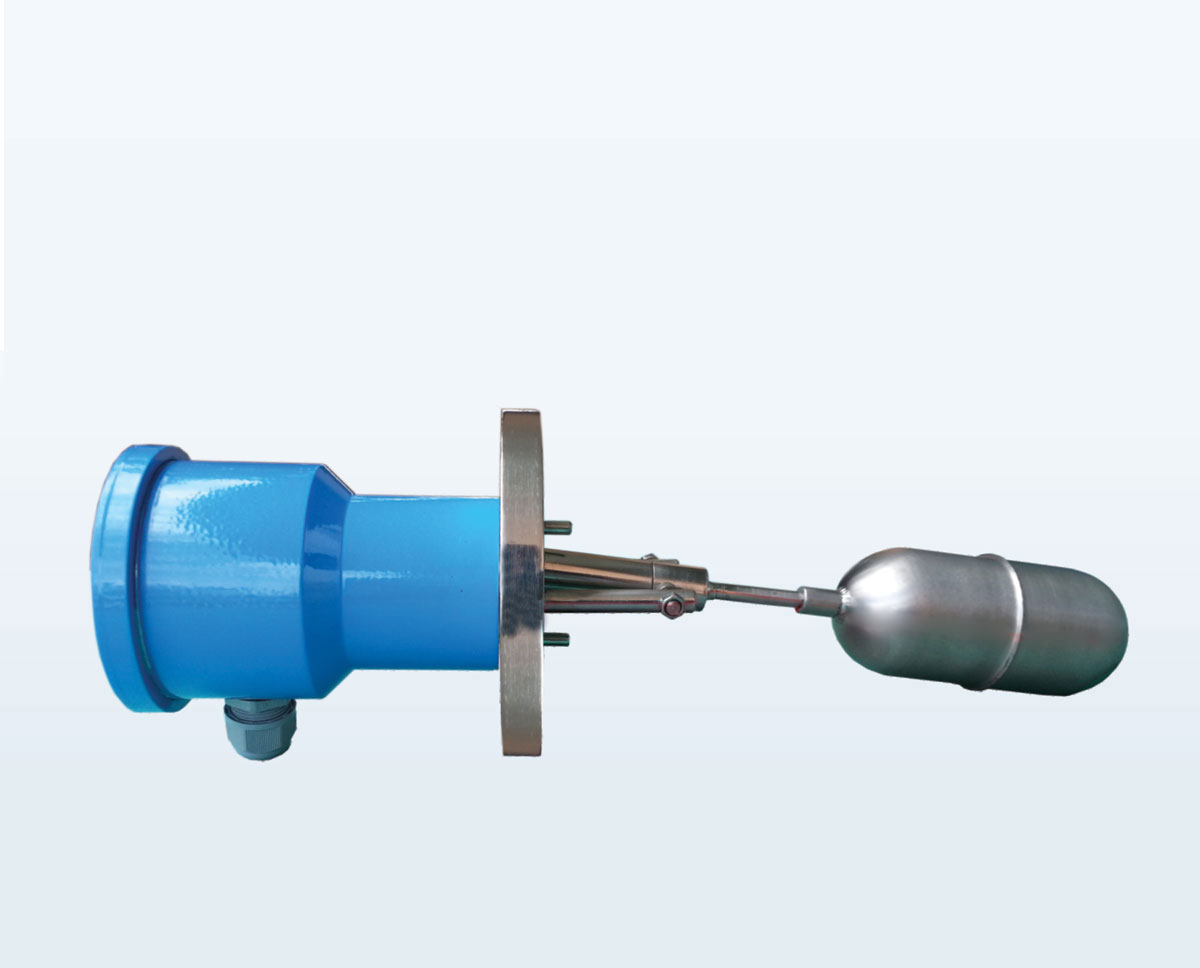

Side mounted level switch used to control liquid level in vessels containing corrosive or non corrosive liquids. It is used to pump control, Alarm, valve control or level indication.
| Switch Type : | Micro Switch, SPDT |
| Switch Rating : | 240V AC, 5A |
| Enclosure : | Weatherproof, Flameproof |
| MOC : | Cast aluminium, SS, PP |
| Flange : | Standard Dia 120, 92 PCD, Also available in ANSI, BIS, DIN Standard Flange |
| MOC : | SS 304, SS 316, PP |
| Float : | Dia 50, 60, 75, Non Standard |
| Max Temperature : | 150º C (Higher temperature on request) |
| Max Pressure : | 20Kg / Cm² (Higher Pressure on request) |
