Ultrasonic level transmitter Manufacturers, Suppliers, Dealers in Belagavi

Ultrasonic level transmitter

Our company “SAHANA ENGINEERING” is the leading and developing manufacturer, supplier and trader of Ultrasonic Level Transmitter in Belagavi.

ULTRASONIC LEVEL TRANSMITTER EXPORTED BY OUR COMPANY:

Our Ultrasonic Level Transmitter manufacturer in Pune creates these transmitters that work by using the speed of sound as given in ‘Time of Flight’ as their working principle for adequate result for our valuable clients. We suppliers in Pune provide a huge variety of these level transmitters that are able to emit pulses of higher frequency range for easy measurement of liquids.

MEANING- ULTRASONIC LEVEL TRANSMITTER

ULTRASONIC LEVEL TRANSMITTERS are the devices consisting of ultrasonic level sensors for measuring the desired distance by using the ultrasonic waves. These are the level sensing technology of non contacting nature working in the same manner as compared to the sonar or radar.
The ultrasonic sensors have two basic components that are the transmitter and receiver. These transmitters consist of piezoelectric transducers which produce sound waves of greater frequency within the ultrasonic range.

PROPERTIES OF THESE TRANSMITTERS -

  • No Contact needed with Processed Material
  • Focused Accuracy
  • Higher Sensitivity
  • Continuous level Measurement
  • Variable GAP technology for Stable Readings
  • Deal for Installations in Hazardous Area
  • User Friendly Nature
  • Easy to set up

Highlights :

  • Our entry level cost effective product
  • Fast setup, configuration and commissioning
  • Maximum range of 10mts (33fts)
  • 4-20mA output and optional LCD display
  • False echo tracing
  • Direct installation on tanks, vessels and reactors
  • Independent hand held programming unit for fast configuration of multiple units
  • Perfect for diesel oil tank measurements
  • Extended range of 0.25 to 15 meter (0.8ft to 49ft)
  • Integral LCD display, keypad and integral 4-20 mA output
  • Automatic compensation for different environment
  • Approved for installations in hazardous areas (Ex)
  • Simple to install and configure
  • Direct installation on tanks, vessels and reactors

Specifications :


Electronics Housing Stainless Steel or die cast aluminium, flame proof
Temperature 0 to 65 deg C
Applications Liquids including hazardous but non-corrosive medium
Input Supply 24V DC
Analog output (Programmable) 4 – 20mA, 20 – 4 mA, 0 – 10 V DC, 10 – 0 V DC
Mode Distance OR height measurement
Display 8 x 2 alphanumeric displya, “ 7 segment LED ”
Communcation RS 485 – Modbus

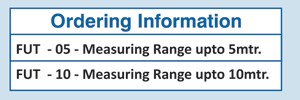

Measuring range 5mtr, 10mtr ,0.5mtr, 1 mtr, 3.5 mtr
Resolution 1mm, 5mm or 10mm depending on models
Accuracy 0.5% of FSD
Updation time 150 mS max
Minimum distance 40mm to 300mm depending on range
Display Filter None / Low / Medium / High
Temperature compensation Inbuilt
Voltage Variations Internal calibration and automatic compensation
Process connections ½” BSP, 1 ½” BSP
Electrical connections PG 9 one gland, 2 numbers
Sensor face Anodised aluminium
Sensor body PVC
