Oil Level Indicator

Oil Level Indicator

Our company “SAHANA ENGINEERING” is the leading and developing manufacturers, suppliers and traders of Oil Level Indicator in Belagavi.


Sahana Engineering is a leading manufacturer, supplier & exporter of Oil Level Indicator in Pune. Sahana Engineering Manufacture Cost Effective Oil Level Indicator in Pune and ensures low cost of production, and output of high quality.

Oil Level Indicator manufacturer, Oil Level Indicator manufacturer in Belagavi, Oil Level Indicator supplier, Oil Level Indicator supplier in Belagavi, Oil Level Indicator exporter, Oil Level Indicator exporter in Belagavi.


Oil Level Indicator is designed to indicate the Oil level inside the tank with a visual indicator above the tank. Oil Level Indicator is very useful in visually monitoring the Oil level from a distance. Reed Proximity sensor is fitted to Oil Level Indicator for remote feedback of high, low or multiple levels of tank .The Reed Proximity Sensors are easily adjustable at site & have Latching technology.


    Highlights :

  • ● Designed to indicate oil level inside the tank.
  • ● Precision design
  • ● Longer service life

Standard Construction :

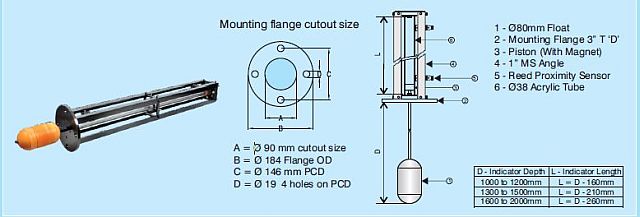

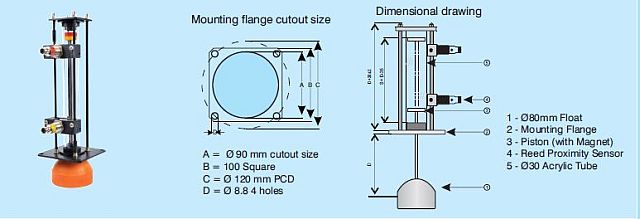

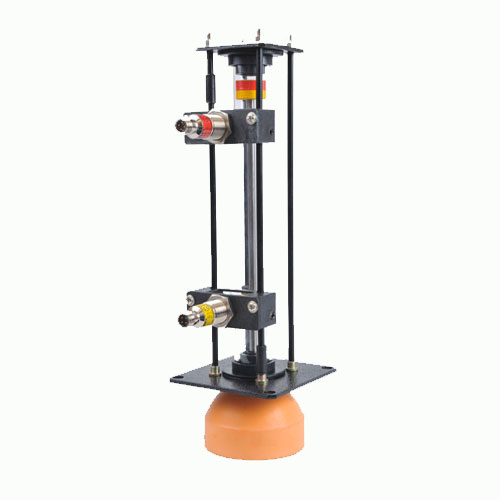

Standard Oil Level Indicator is provided with transparent acrylic tube mounted on a MS flange, supported by four SS tie rods. Reed proximity sensors are mounted on two tied rods using mounting brackets. Float is made up of Solid Nylon Foam of very low density. The float is connected to a piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of oil level indication & actuation of Reed proximity sensor.

Application :

Coolant, Oil, Diesel & Hydraulic oil applications.

Oil Level Indicator Oil Level Indicator

Specifications :


Indicator length : 100mm to 900 mm
Max. Temperature : 80oC
Max. Pressure : Atmospheric
Mounting flange : 100 Sq. Ms
Float : 80mm, Solid Nylon Foam
Indicationg tube : 30, Acrylic

OIL LEVEL INDICATOR OF OUR COMPANY:

Our Oil Level Indicator manufacturers in Pune create standard quality products with easily adjustable level features consisting of visual indicators giving adequate performance as per our client expectations.
We suppliers in Pune provide them with excellent quality high level sensors and are very useful for monitoring and observing the oil level visually from the distance as per the demands of our prestigious clients.

MEANING- OIL LEVEL INDICATOR

OIL LEVEL INDICATOR is a kind of level indicator that is produced in response towards the need of maintenance to gauge the level of oil present inside the gearboxes, reservoirs, large tanks, etc.
These indicators are used in automotive or vehicles to check and indicate the levels of lubricant in the vehicle whether they are low or high. The transformers also use them for displaying the air bubbles if they are left in the transformer.

FEATURES OF IT:

  • ● Rugged Design
  • ● Greater Strength
  • ● Easy To Fit
  • ● Attractive Appearance
  • ● Cuttable Probe
  • ● Digital/Analog Output Option
  • ● Explosion Protected Version
  • ● Corrosion Resistant Nature

APPLICATION OF OIL LEVEL INDICATOR:

These indicators are used for performing different works in huge number of varying industries as follows:

  • ● Chemical
  • ● Petrochemical
  • ● Ship Building
  • ● Machine Building
  • ● Power Plants
  • ● Oil and Natural Gas Extraction
  • ● Process Water and Drinking Water Treatment
  • ● Pharmaceutical Industry
