Single Tank Controller

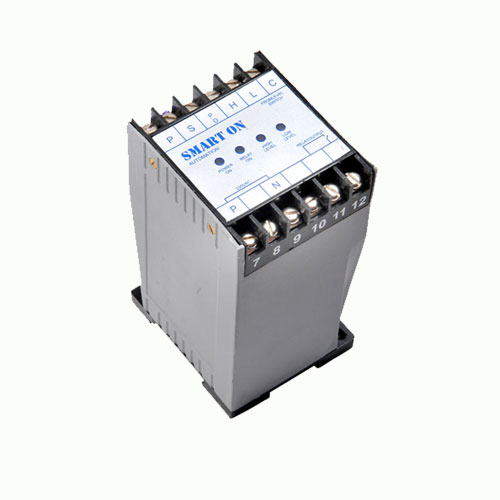

blog_img
  • We offer Liquid Level Controller to automatically start & stop the pump with tank level input from Magnetic Float Switch or Cable Float Switch. Liquid Level Controller provides LED Indication for Power ON, Relay ON (Motor ON), Tank High & Tank Low. The controller has provision to select pump mode as Pump UP or Pump Down. In Pump UP mode, the pump starts at Low Level & Stops at High Level. Pump UP mode is used to fill the tank. In Pump DOWN mode, the pump starts at High Level & Stops at Low Level. Pump DOWN mode is used to empty the tank.


      Technical Specification :

    • Input Supply : 230V AC Sensor
    • Input : From Magnetic Float Switch or Cable Float Switch
    • Output : 1NO contact rated fro 230V AC, 5A
    • Mounting : Back panel 35mm din rail mounting
    • Mode : Pump UP ( Filling ) or PUMP Down ( Emptying)

    Specifications :


    Electronics Housing Stainless Steel or die cast aluminium, flame proof
    Temperature 0 to 65 deg C
    Applications Atmospheric
    Mounting flange : Liquids including hazardous but non-corrosive medium
    Input Supply 12V/24 V DC
    Analog output (Programmable) 4 – 20mA
    20 – 4 mA 3) 0 – 20mA 4) 20 – 0 mA
    Mode Distance OR height measurement
    LCD Screen 8 x 2 alphanumeric displya, green or blue screen
    Communcation RS 485 – Modbus
    Measuring range 1) 5m 2) 10m
    Resolution 5mm or 10 mm depending on models
    Accuracy 0.5% of FSD
    Updation time 150 mS max
    Minimum distance 300 mm
    Display Filter None / Low / Medium / High
    Temperature compensation Inbuilt
    Voltage Variations Internal calibration and automatic compensation
    Process connections 3 inch flange
    Threaded lock nut – Customised
    Electrical connections PG 9 one gland, 2 numbers
    Sensor face Anodised aluminium
    Sensor body PVC
