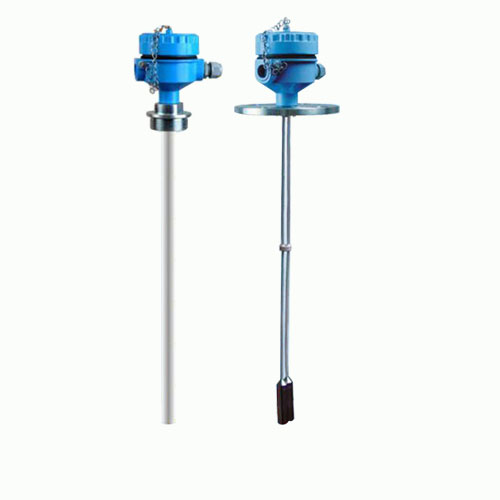

Capacitance Level Transmitter

CAPACITANCE LEVEL TRANSMITTER

Capacitance Level Transmitter Manufacturers, Suppliers, Dealers in Chennai

Our company “SAHANA ENGINEERING” is the leading and developing manufacturers, suppliers and dealers of capacitance level transmitter in Chennai. We capacitance level suppliers in Pune offer a standard variety of these transmitters made from high quality raw material which is best suited for measuring the level of liquids and favorable in nature for our clients.

Our Capacitance Level Transmitter manufacturers company in Pune creates them with innovative techniques having intrinsically safe design and frame proof enclosure and also remains unaffected by dust to withstand the expectations of our valuable clients.

WHAT IS CAPACITANCE LEVEL TRANSMITTER?

CAPACITANCE LEVEL TRANSMITTER is the type of transmitter that operates like a capacitor. These capacitors consist of two conductive plates which are separated by the medium called as insulating material having dielectric constant. The insulated electrode acts as the first plate and the other plate comprises a tank wall or reference electrode.
WORKING PRINCIPLE- Their working depends upon the principle of change of capacitance. The capacitance depends upon the variety of fluid level such as aqueous and organic liquids, solids, slurries, powders, granular material, etc.

The output is 4-20mA, 4 wire connections for isolated supply & 3 wires for non isolated supply. 2 wire loop powered output is also available. The tank empty (4mA) & Full (20mA) calibration is through easy field calibration button in case of 4 wire & 3 wire. For 2 wires it is through multi turn trimpot. Rigid probe is offered for tank depth upto 3 mtr & Flexible probe upto 15mtr. Capacitance Level Transmitter is available with different mounting arrangement to suit customer requirement. It is widely used for water, diesel, oil and chemical application.


Highlights :

  • Excellent design
  • Used for sensing level of liquids
  • Longer service life

PROPERTIES OF IT:

  • GIVES ACCURATE READINGS
  • MINIMUM CONTACT WITH THE MEASURING SUBSTANCE
  • EASY ACCESSIBILITY
  • LESS MAINTENANCE REQUIRED
  • NON-MOVING COMPONENTS
  • RESISTANCE TO TURBULENCE
CAPACITANCE LEVEL TRANSMITTER

Technical Specification :


Type 2 Wire (Loop powered), 3 wire (isolated), 4 wire (Isolated) 4-20 mA 0-10 V DC
Input 24V Dc
Permissible Load 500Ω
Measuring Rage 200 mm to 3000 mm in Rigid Probe Upto 15000 mm in Flexile Probe
Pressure Max. 5kg / cm 2
Temperature -25 to 100oC
Enclosure Die Cast aluminium, Weatherproof or Flameproof
Resolution 5mm
Accuracy +0.5 % Fs
Mounting Threaded -½" / 1" / 2" bspm or Npt Flange - 1" /2" Asa/Ansi/Jis/din
Mounting SS 304 or SS 316

Range 0 to 10 Meter
Design Pressure Up to 15kg
Temperature 85`C
Probe Material SS304 PTFE insulated SS316 SS316L
Transmitter Output 4-20 m-Ampere
